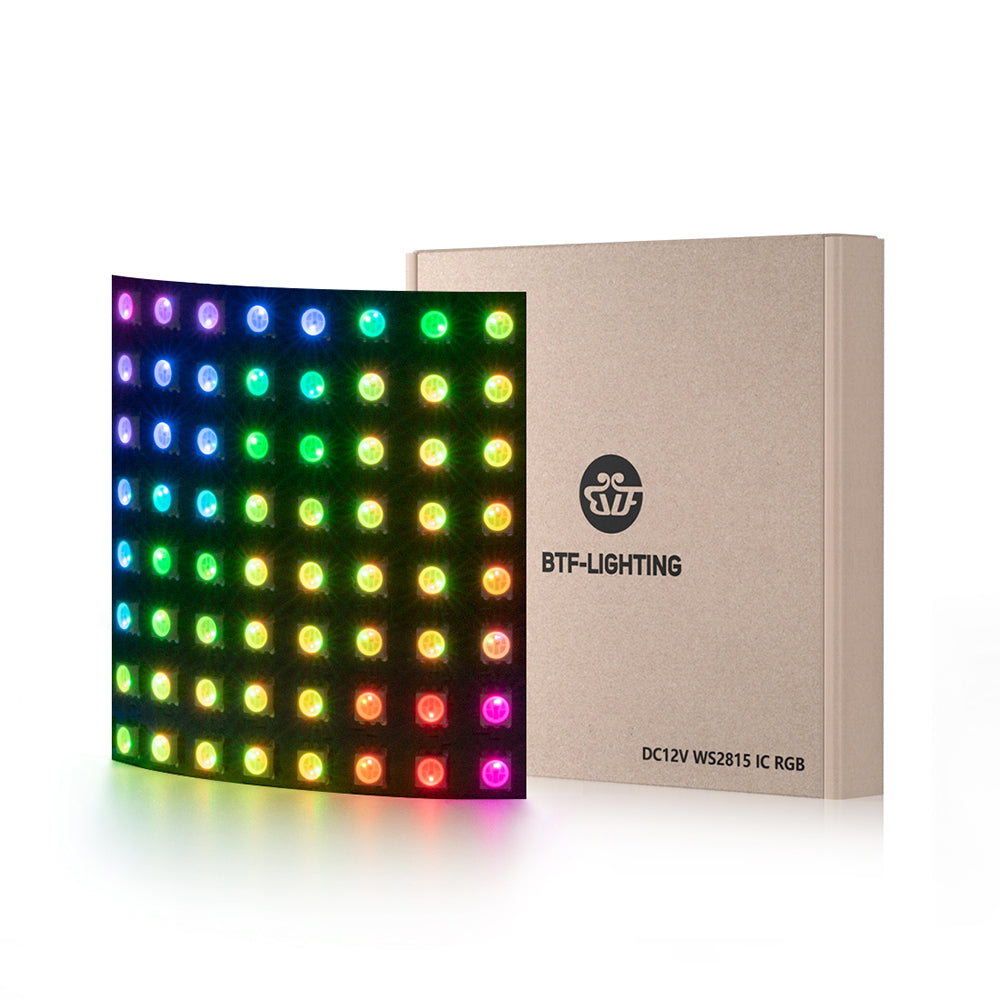

WS2815 Individually Addressable RGB LED Panel – DC 12V Dual Signal, 8x8 / 16x16 / 8x32 Matrix Screen

Shipping Policy
Notice: Customers should take care of the clearance and customs duties.

Individually addressable:
Each pixel can have its own color and brightness. You can control it individually and set them to any color or animation you want. 256 brightness display and 24-bit color display.
Dual-signal wires:
WS2815 Led Panel is designed with one data wire and one backup data wire. Signal break-point continuous transmission. If one LED is damaged, the following LEDs can still work.

Three size:
8*8, 64leds, 8cm*8cm
16*16, 256leds, 16cm*16cm
8*32, 256leds, 8cm*32cm

Specifications:
IC type: WS2815 IC.
Gray level: 256.
View angle: 120.
Input voltage: DC 12V.
Color: full color 24-bit.
Theoretical Power: 0.3W/LED.
Model: WS2815 5050 RGB Chips.
Wave length(nm): Red 650nm, Green 520nm, Blue 460nm.
Waterproof level: IP30 Non- waterproof

Package includes:
1 x WS2815 DC 12V LED Panel Screen.
1 x 4 Pin connector.

Note:
Only Have Led Panel, Not Include Led Power and SPI Led Controller!

WS2815 Led Panel Must Use DC12V Power Supply, and Must Need SPI Led Controller to Control!
