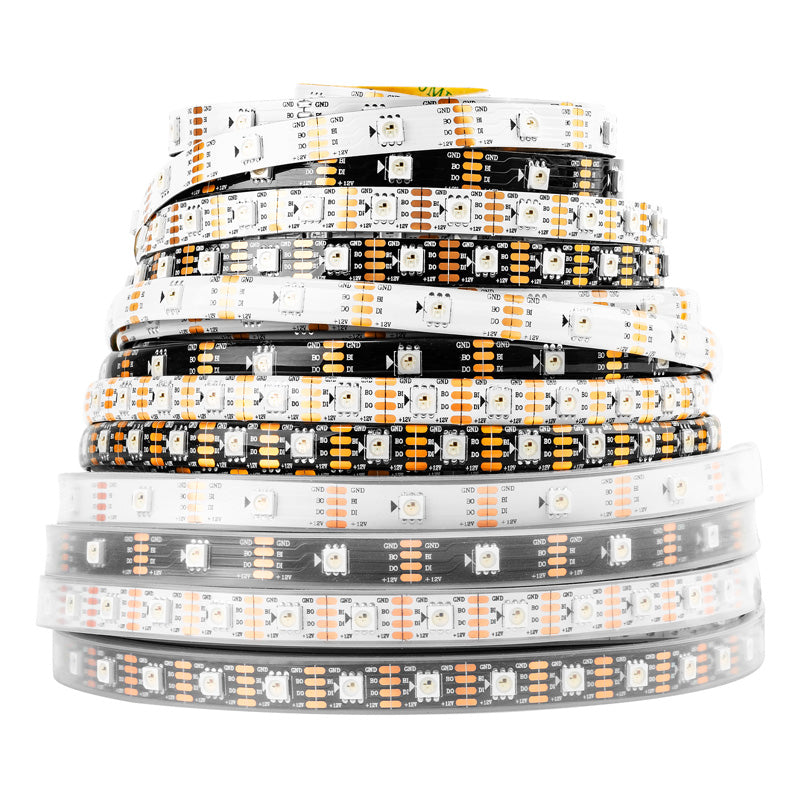

WS2815 RGBIC Individually Addressable Dual-Signal LED Pixels Strip Light Chasing Effect DC12V

$8.99 $11.99

Shipping Policy
Notice: Customers should take care of the clearance and customs duties.


SPECIFICATION:
IC Type :WS2815 IC
Gray Level: 256
View Angle: 120°
Input Voltage: DC12V
Color: Full Color 24-bit
FPCB Board Color: White/Black
Power: 0.3W/LED  30/60/144 LEDs/m
Model: WS2815 Strip 5050RGB Chips
Storage Temperature: -30-+95 °C
Operating Temperature: -20 ~ +85°C
Wave length(nm): Red,650nm ; Green,520nm; Blue,460nm

Package Includes:
1 x 1M/5M RGB 30/60/144leds/m LED Strip
1 x 4pin Connector

NOTE!
The power adapter and controller are not included!
It is forbidden to light up for a long time when the strip is in the spool.


第二


12V WS2812B LED Strip:
WS2815 LED strip is an upgraded version of the 5V WS2812B LED strip. For the 5M LED strip, even if all the LEDs are turned on full white, the 12V version has no voltage drop. You don't need to inject power as frequently as the 5V version.
Individually addressable: Each pixel can have its own color and brightness. You can control it individually and set them to any color or animation you want. 256 brightness display and 24-bit color display.
Dual-Signal Wires:
WS2815 LED strip is Similar to the version of the 5V WS2813 LED strip, Designed with one data wire and one backup data wire. Signal break-point continuous transmission. If one LED is damaged, the following LEDs can still work.

smd

压降



1


Led Qty: 30/60/144pcs RGB SMD 5050 per meter
The Distance Between Two LEDs: 30Leds/m -- 28mm, 60Leds/m -- 12mm, 144Leds/m -- 1.92mm


修改


12


new


Wide Compatibility:

Can be controlled by Arduino, Raspberry Pi, Fadecandy, K1000C, SP105E, SP107E, SP110E, etc.

controller

Waterproof level: IP30: Non- waterproof, IP65: Waterproof in Silicon Coating, IP67: Waterproof in SiliconTubewEasy Installation:
Self-adhesive tape on back FOR IP30/IP65, it can be fixed on any dry and flat surface without any screws and clips. Each LED can be cut off at the cutting line.
There are 4-pin JST SM connectors and separated power/ground wires on both ends, which make it easy to hook up each other and wire for power.
