Features:
Using mini LED as light source, and glue on surface to make the lights more evenly and uniform.
Double layer FPCB, balancing the voltage dropping, heat dissipation and flexibility.

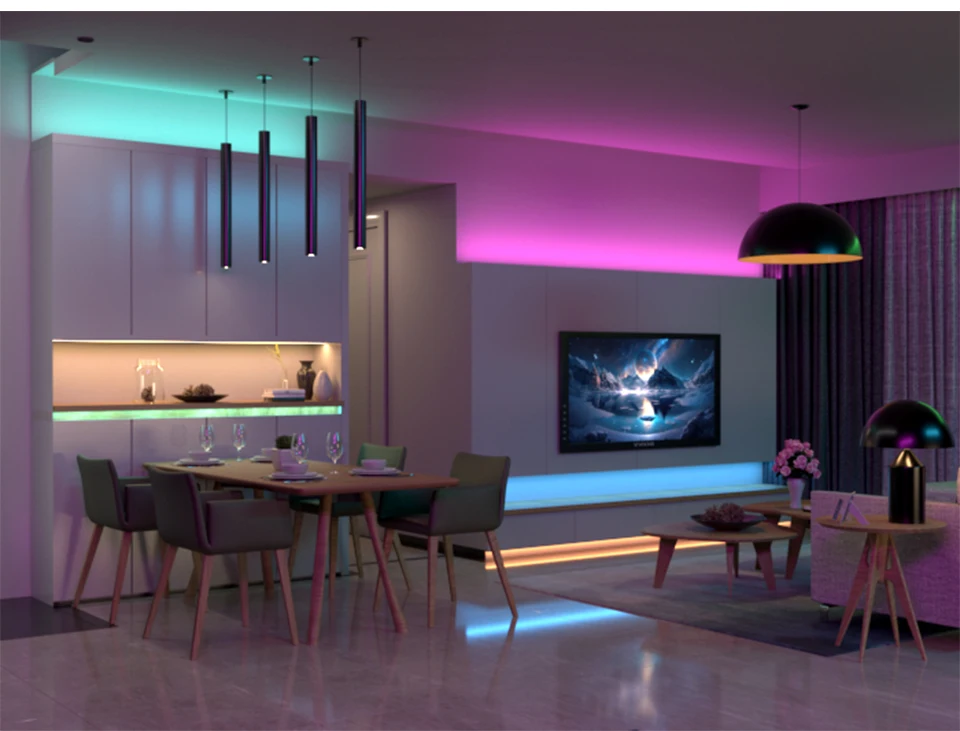

Compatible with most of the PWM RGB controllers in the markets. Applications, Residential lighting, decorative lighting.

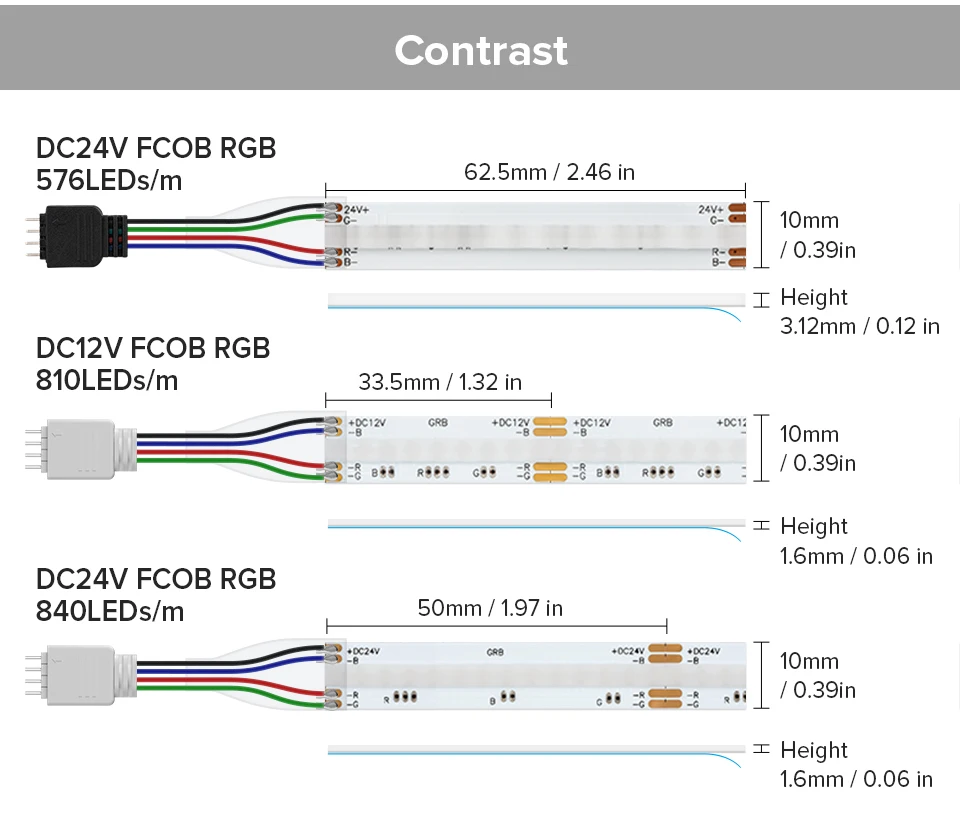

Specification:
Input Voltage: DC24V.
Wattage: 14W/M.
FPCB width: 10mm.
LED quantity: 576LEDs/M.
Cutting length: 62.5mm.
Colors: RGB full Colors Changeable.
Color Rendering Index: Ra＞90.
Operation temperature: -20℃-+45℃.
Storage temperature: -20℃-+60℃.
View angle: 180°.
Package:
1 x 3m/5m FCOB PWM RGB 576 LED strip ( power supply and PWM controller is not included ).

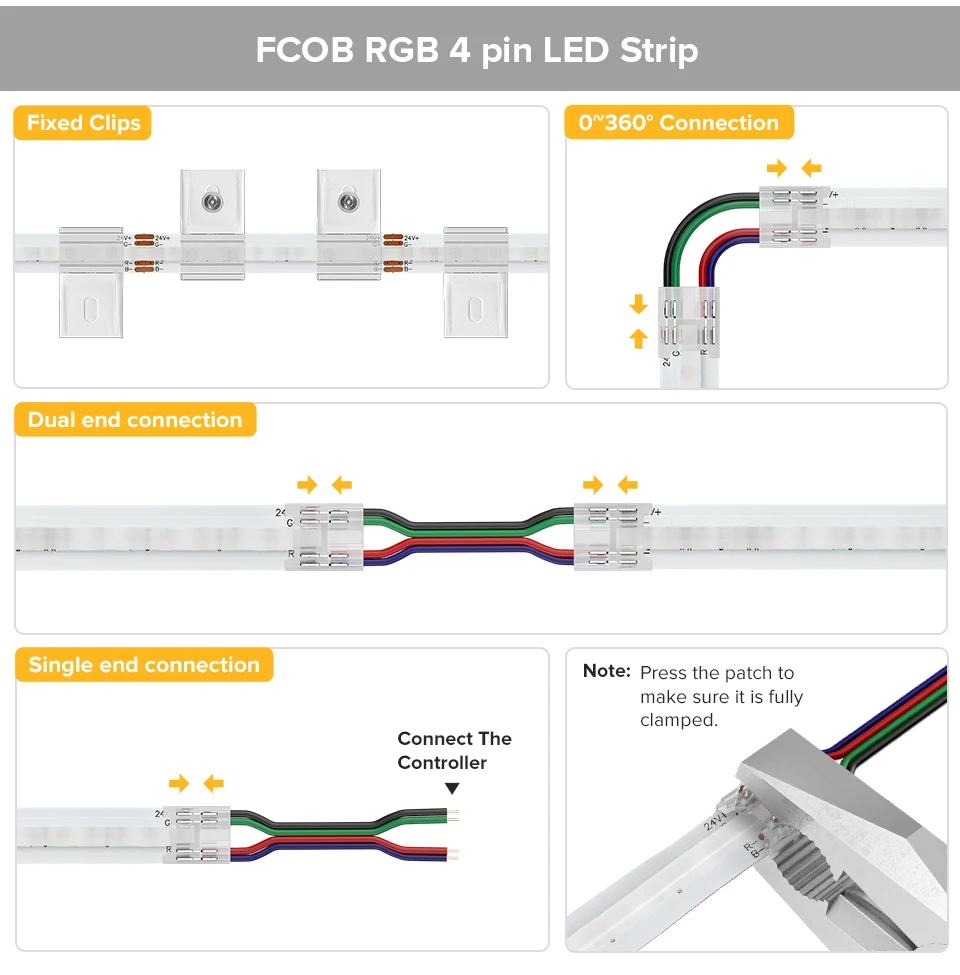

Installation Ways:

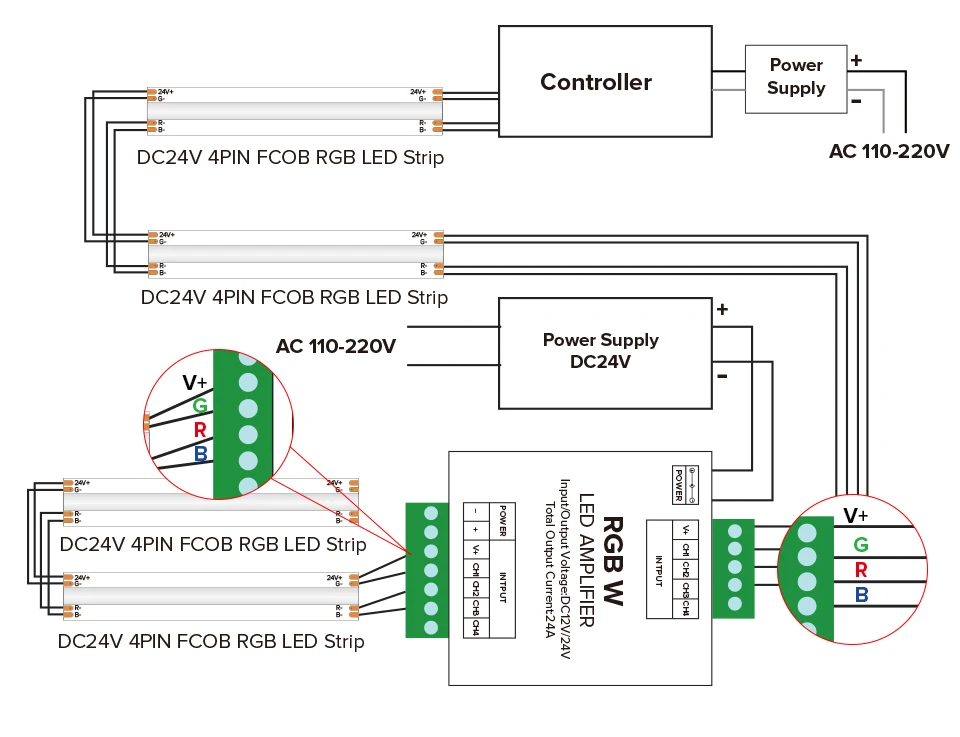

1. For powering on one side, the recommend running length is 5 meters, for over 6 meters please connect in parallel.
2. Make sure of the total watts of COB Strip lights is less than 80% of the power supply's max output.
3. Match the polarities according to the marks in the PCB while connecting.
