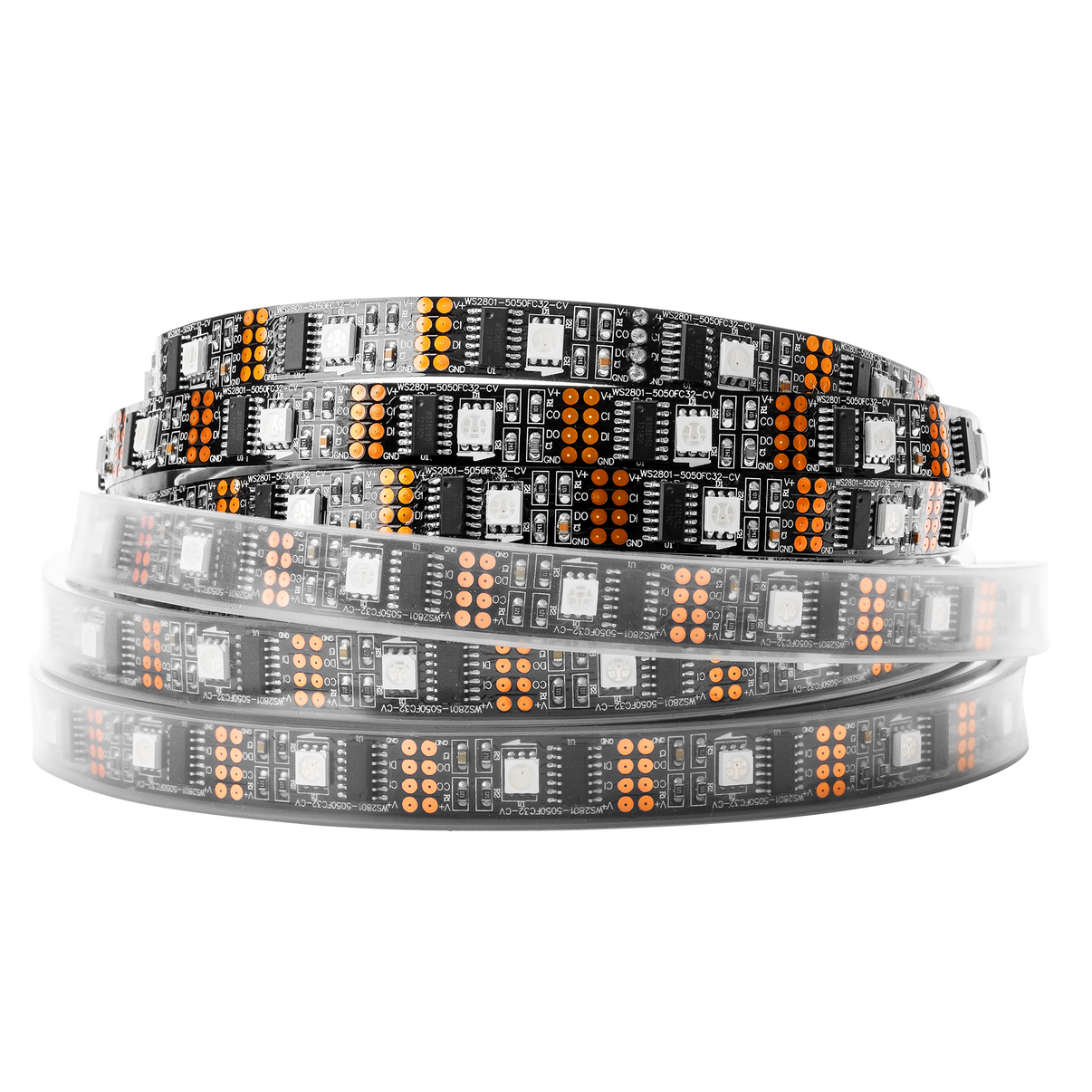

WS2801 32leds/m DC5V RGB LED Strip Individually Addressable

Save 42%

Shipping Policy

Item Type: Strip
Average Life (hrs): 50000
Certification: CCC,RoHS,CE
LED Chip Brand: Epistar
LEDs Number/M: 32 pcs/m
Power Source: DC
Occasion: Living Room
Strip type: SMD
Waterproof: Yes
Model Number: ws2801 strip
LED Chip Model: SMD5050
Power Consumption (W/m): 9.6W/m
Voltage: 5V
Specifications (light beads / m): 32
is_customized: YES
Only Have Led Strip, Not Include Led Power And Led Controller!
WS2801 Must Use DC5V Power Supply, And Must Need Led Controller Control!
Below information will help you to use Arduino working with this product.
WS2801, 32 diodes/meter, RGB Strip.
A control circuit for the 4 pin
1: 5 V +
2: clock
3: Data
4: GND 5 V-
1) FPCB Size: width:12mm
2) Emit Color: dream magic color
3) Protection: IP30 Non-Waterproof
                       IP67 Waterproof in Tube
4) Working Voltage: 5V DC
5) LED Quantity: 32eds / m
6) View Angle: 120 ° ~ 140 °
7) Working Temperature: -20 ° to 50 °
8) 350-450mcd / led
9) Wattage: 7- 9W / meter,
10) Use the programmable controller, Raspberry Pi or Arduino or T-1000S controller
