Notice: Customers should take care of the clearance and customs duties.
Using mini 0402 LED as a light source, and glue on the surface to make the lights more evenly and uniform.
Up to 810 LEDs/840 LEDs each meter, only 3.7mm/3.57mm distance between same color LEDs.
Double layer FPCB, balancing the voltage dropping, heat dissipation, and flexibility.
Compatible with most of the RGB controllers on the market.
Applications, Residential lighting, decorative lighting.
These LED lights need to work with an RGB controller.
Input Voltage: DC12V / DC24V.
Wattage: 810leds-15W/M, 840leds-16W/M.
FPCB width: 10mm.
FPCB height: 1.6mm.
LED quantity: 810LEDs/840LEDs/M.

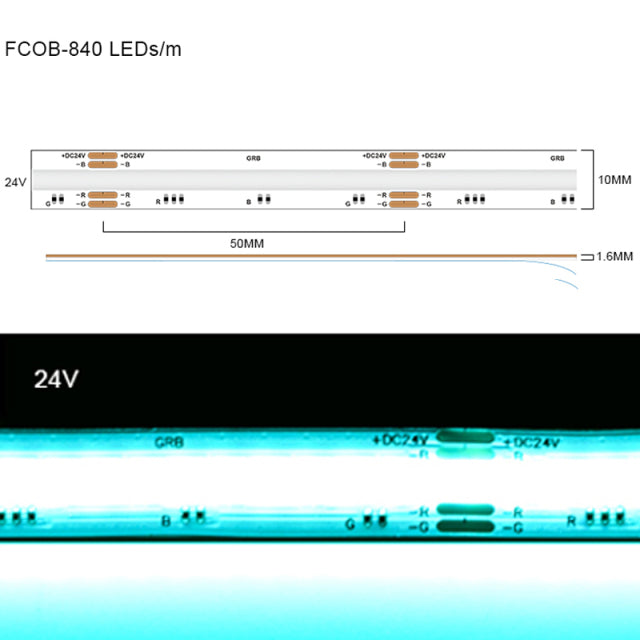

Cutting length: 810leds/m, DC12V- every 33.33mm. 840leds/m, DC24V-every 50mm.
Colors: RGB, Any Colors Changeable ( Including Mixed White Light ).
Color Rendering Index: Ra＞90.
Operation temperature: -20℃-+45℃.
Storage temperature: -20℃-+60℃.
View angle: 180°.
1× FCOB RGB LED strip ( power supply and controller is not included ).
1, For powering on one side, the recommended running length is 5 meters, for over 6 meters please connect in parallel.
2, Make sure the total watts of COB Strip lights are less than 80 of the power supply's max output.
3, Match the polarities according to the marks in the PCB while connecting.
